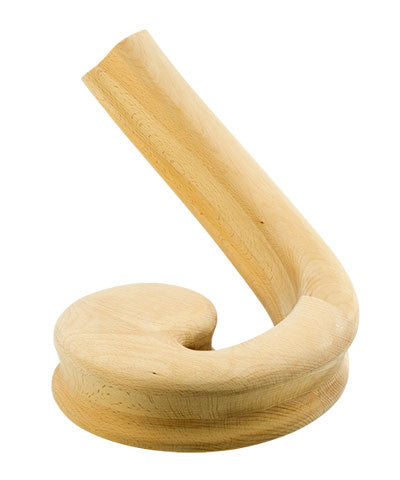

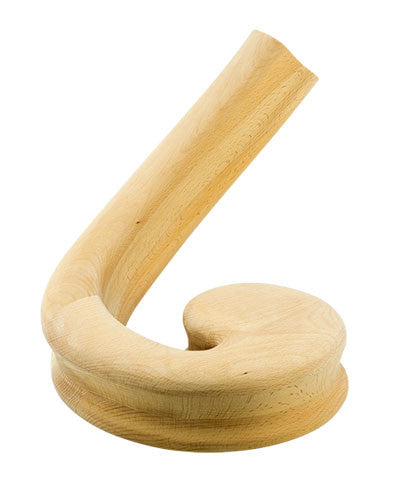

9230CAH or 9235CAH Curved Arm High Volute

Overview

9230CAH Left and 9235CAH Right hand Curved Arm High Volutes for the 9200 Handrail. This is an "ascending" high volute, generally used for steep staircase runs, such as the inside radius of a circular stair where the pitch is 40 to 48 degrees.

Shipped with layout templates and 3001 Rail Bolt Kit and Flush plugs.

Please select right and or left when ordering your volute. Fittings are determined as left hand or right hand when ascending a staircase. If one is holding the rail with his right hand going up, all the designated fittings are right hand. If one is holding the rail with his left hand going up, all of the designated fittings are left hand.
