Floor Mount U Channel 120 x 45 mm

Overview

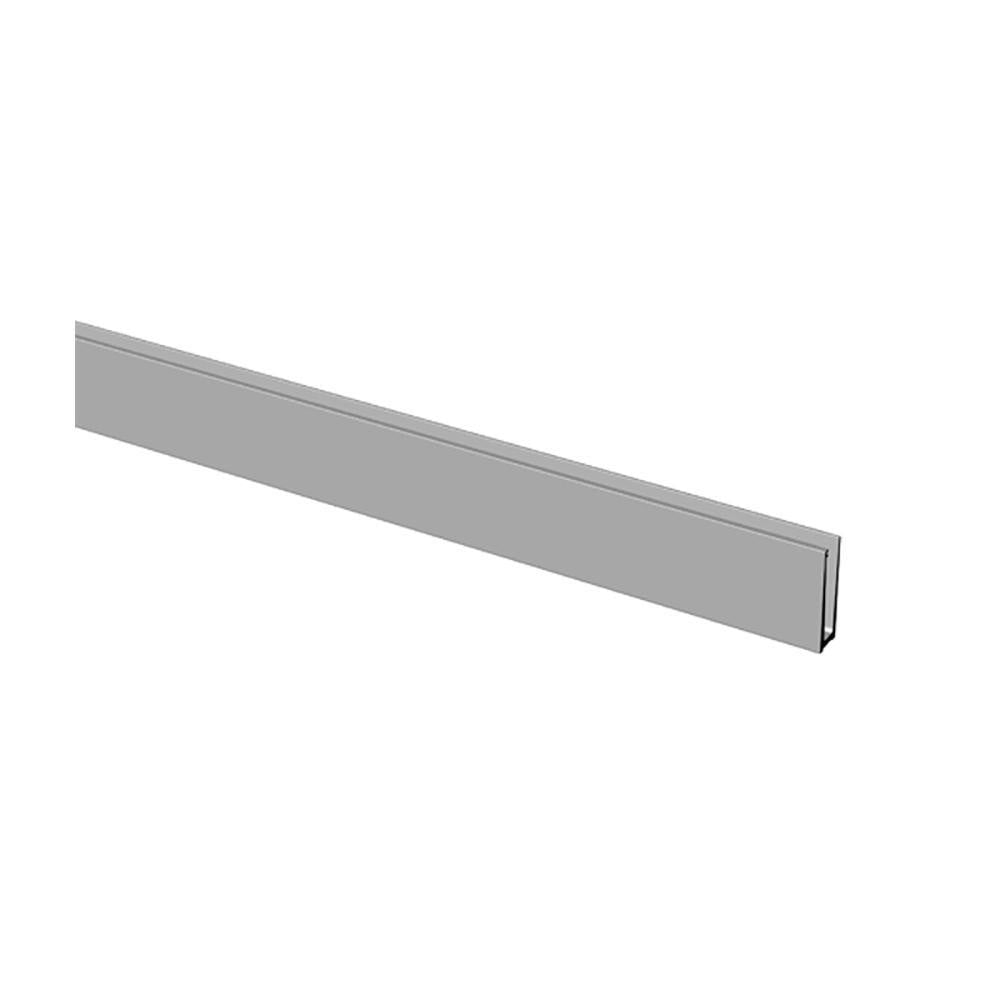

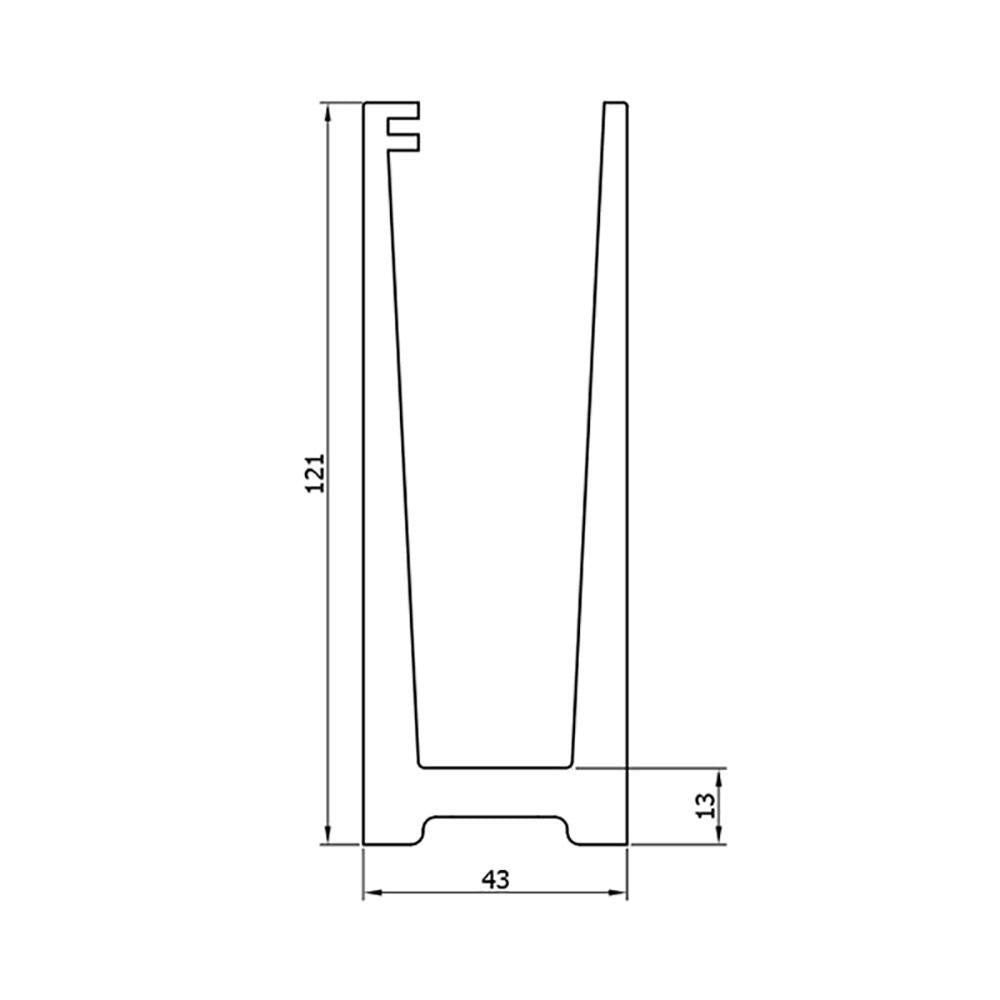

Our Floor Mounted U-Channel is used for holding 1/2″ Monolithic Glass. This U-Channel is 121 mm x 43 mm in size and comes in lengths of 2500 mm (8 ft. 2 in. ) And 5000 mm (16 ft. 4 in. ). It has a Satin Aluminum Polish Finish.

This listing includes the U-Channel Base as well as the inside and outside 90-degree corners, stainless steel cladding and end caps.

The Wedge Kit (sold HERE) is also required in the following quantities:

2 kits per 5000 mm piece of U-Channel
1 kit per 2500 mm piece of U-Channel
1 kit per per 5 corners

Anchors are also required (wood or concrete) in the following quantities:

10 wood screws or 10 concrete anchors per 2500 mm piece of U-Channel
19 wood screws or 19 concrete anchors per 5000 mm piece of U-Channel
2 wood screws or 2 concrete anchors per corner

Accessory pieces include the following:

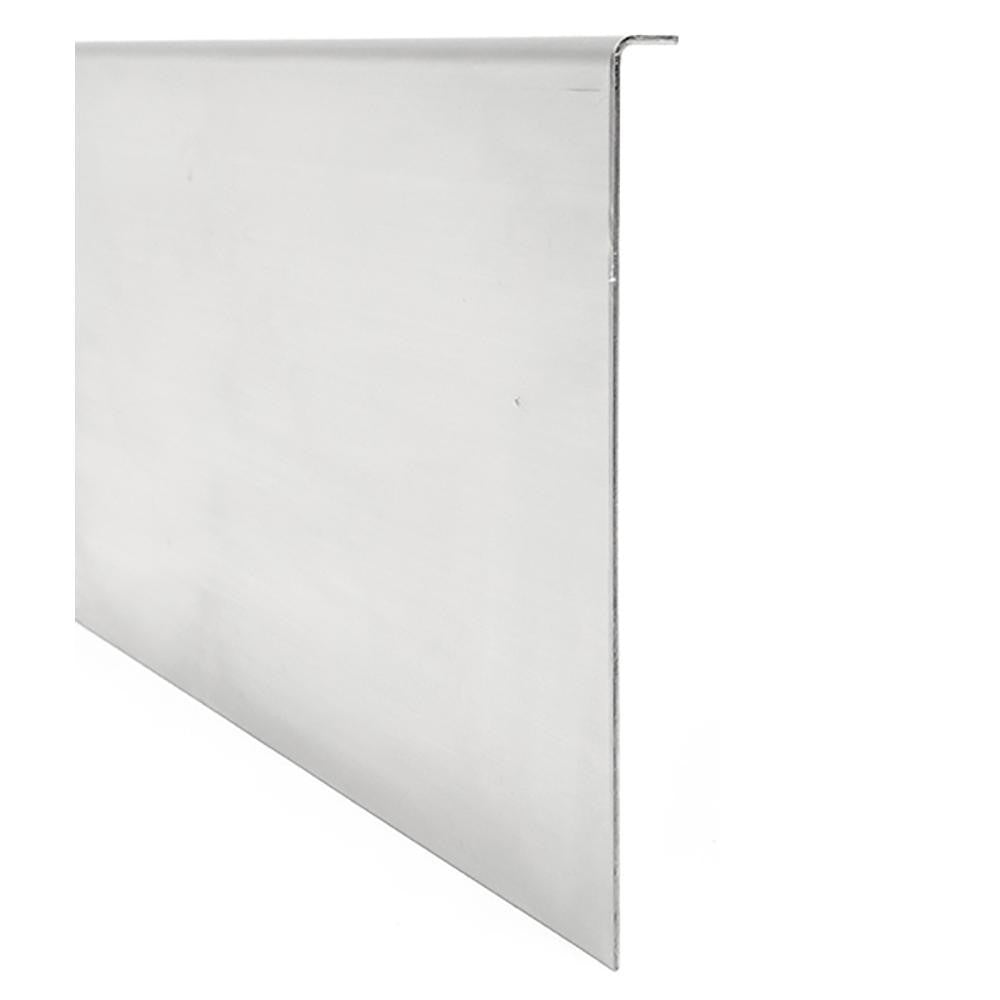

Stainless Steel Cladding – 123 mm tall x 2500 mm long – Self Adhesive, just peel and stick. It gives a complete stainless-steel look and covers the front exposed area.

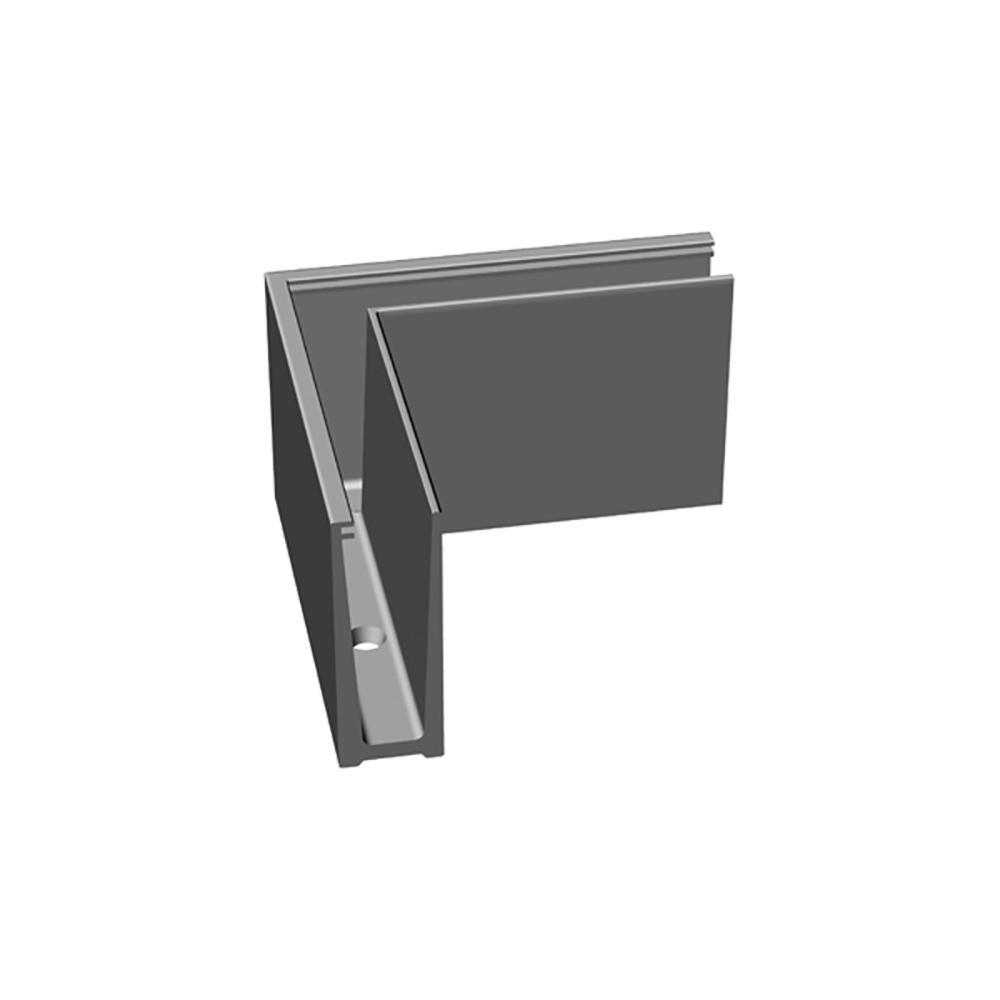

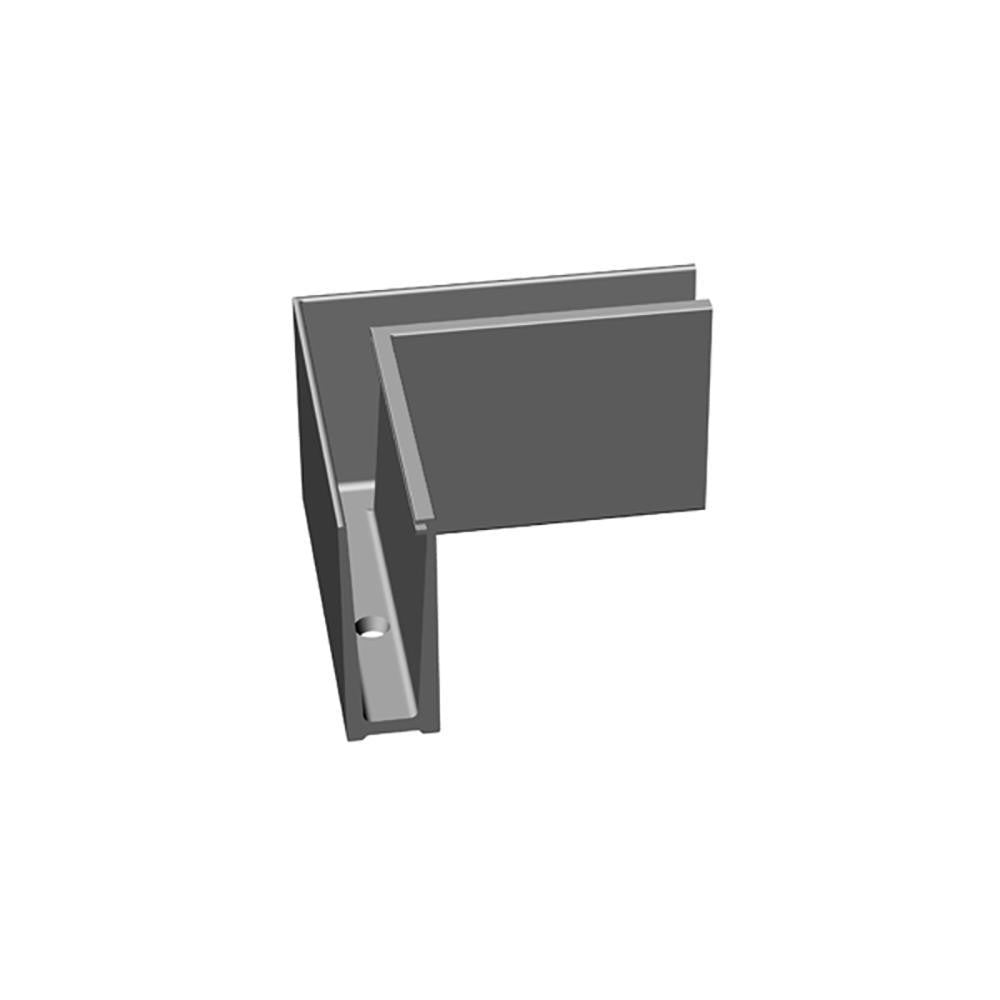

Outside 90 Degree Corner – 120 mm x 43 mm x 200 mm – Floor Profile for an Outside 90 Degree Corner.
Inside 90 Degree Corner – 120 mm x 43 mm x 200 mm – Floor Profile for an Inside 90 Degree Corner.

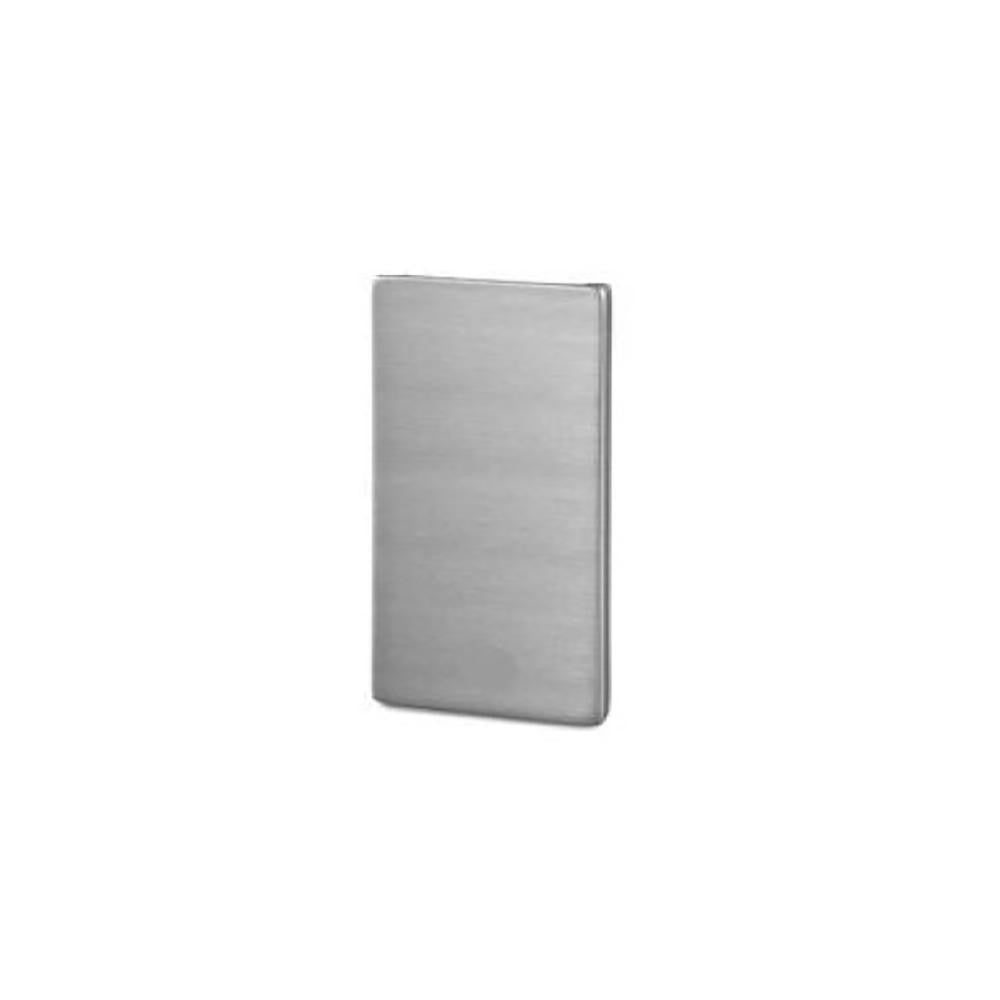

End Caps for Level as well as Angle / Rake – One for Flat and One for Angled up to 40 degrees. Install with a dab of epoxy. Trim to Fit.

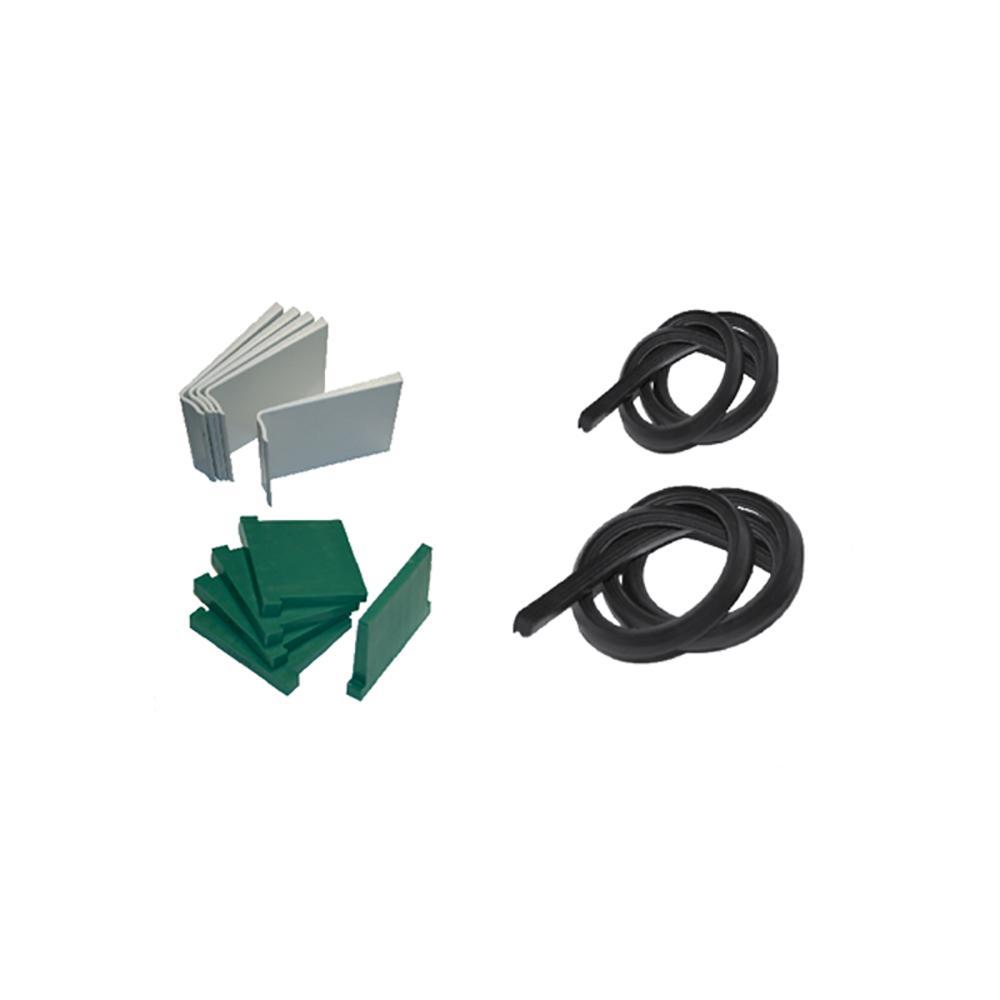

Glass Gasket and Wedge Kit – Comes with enough material to install 2500mm worth of glass. See description above on how to order enough of these kits.

For Wood Square Newels, use the ForestKraft link.

See our Installation Guides for help with installing the stainless-steel system parts. Click Here
