Overview

AX20.001.010.A.SP Square Post Options – 40 x 40 x 2 mm

We sell a variety of square newel posts at Westfire Stair Parts to help you complete the look of your home, including individual posts, wall and core mounts, and flange covers. Use the information below to install the post. Includes Flange Cover.

AX20.001.010.A.SP

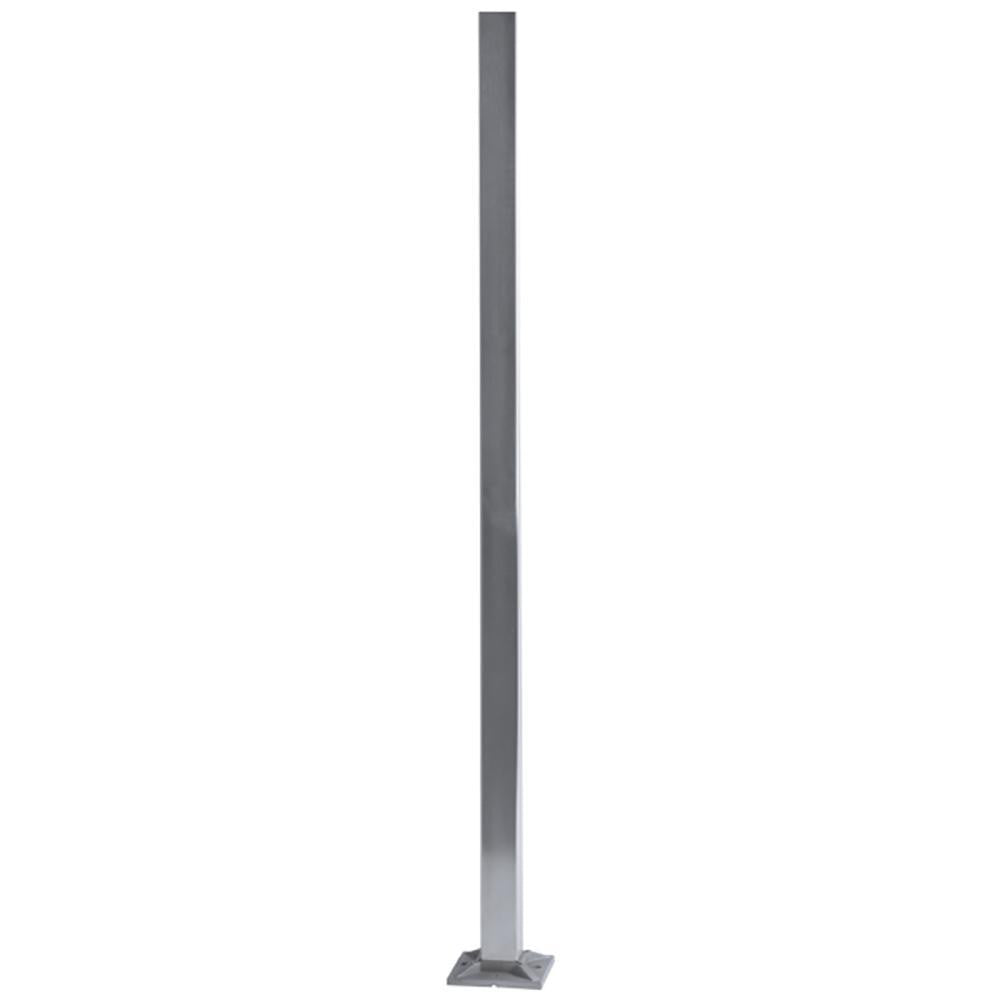

Square Post – Floor Mounted
40 mm x 40 mm Square – 2mm wall thickness
1000 mm tall ( 39 – 3/8 in. )

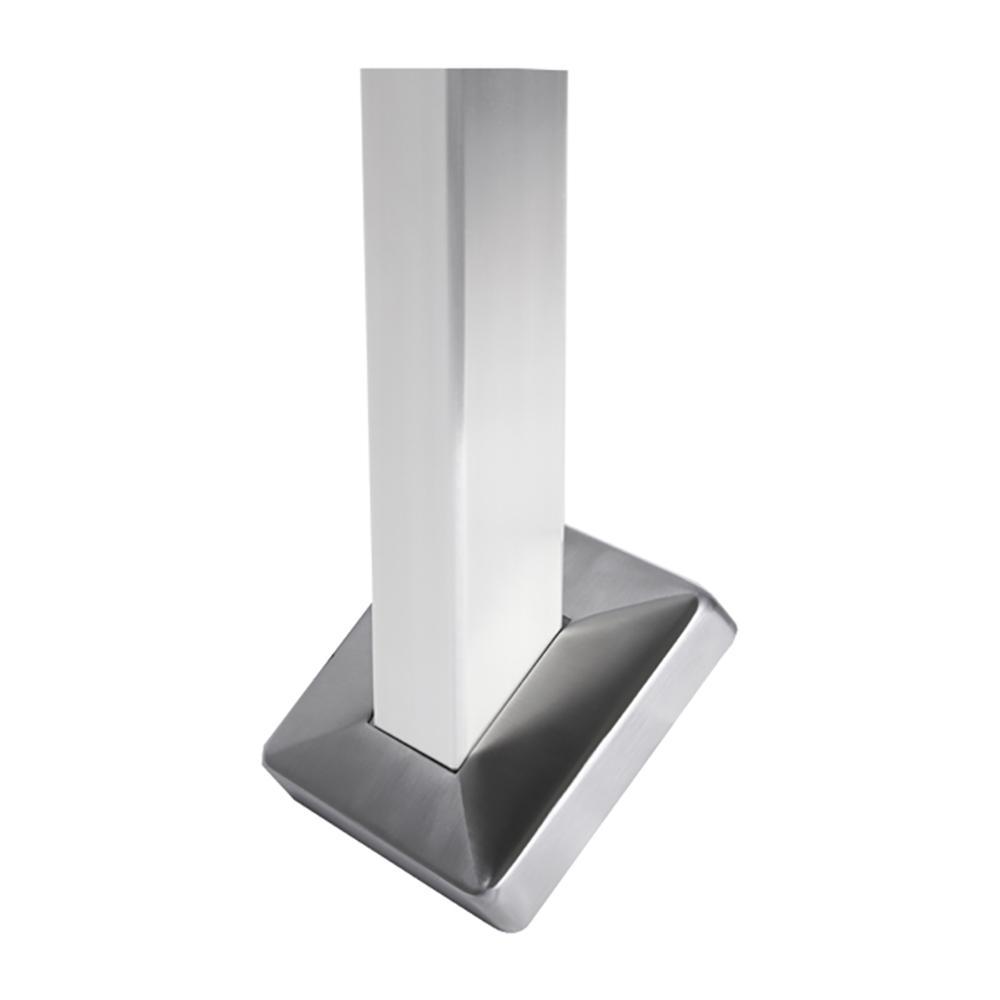

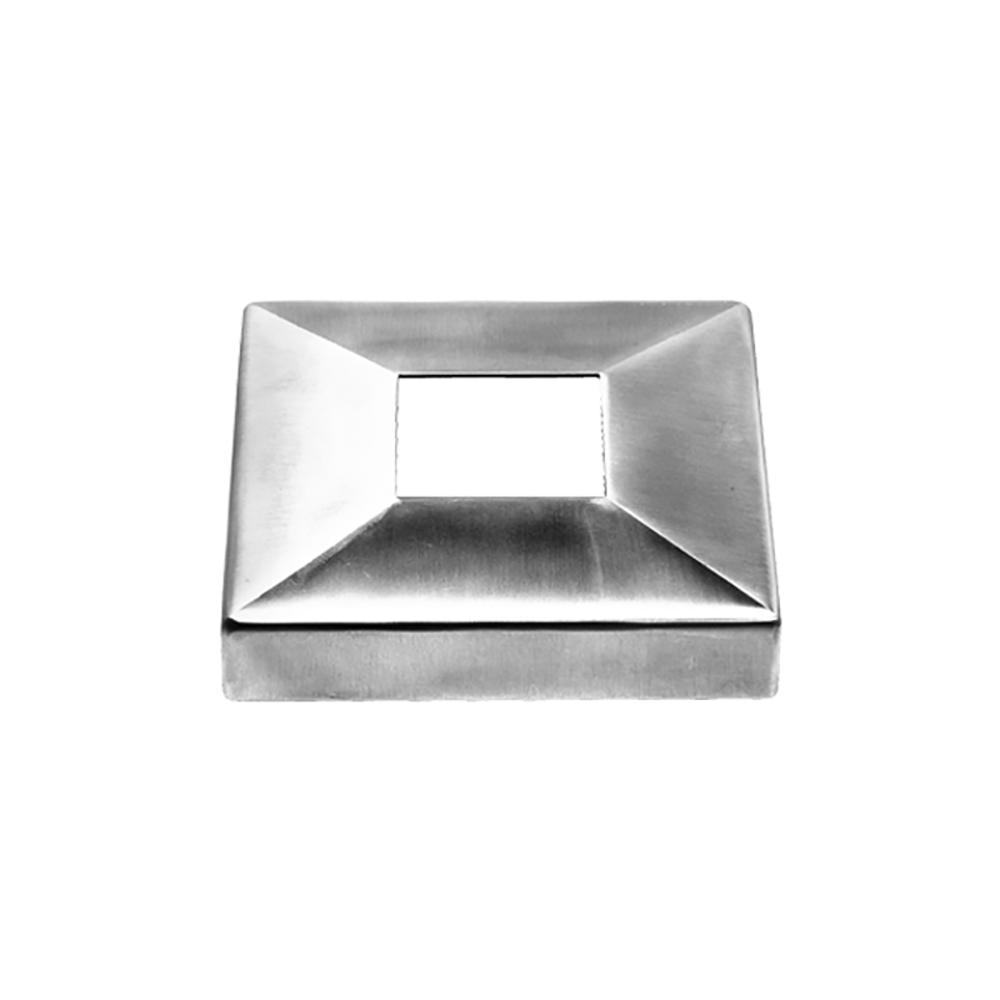

Floor Mount with Flange Cover – 100 mm base ( 3 – 15/16″ in.) – Requires two screws Part # AX00.091.800.A.SP

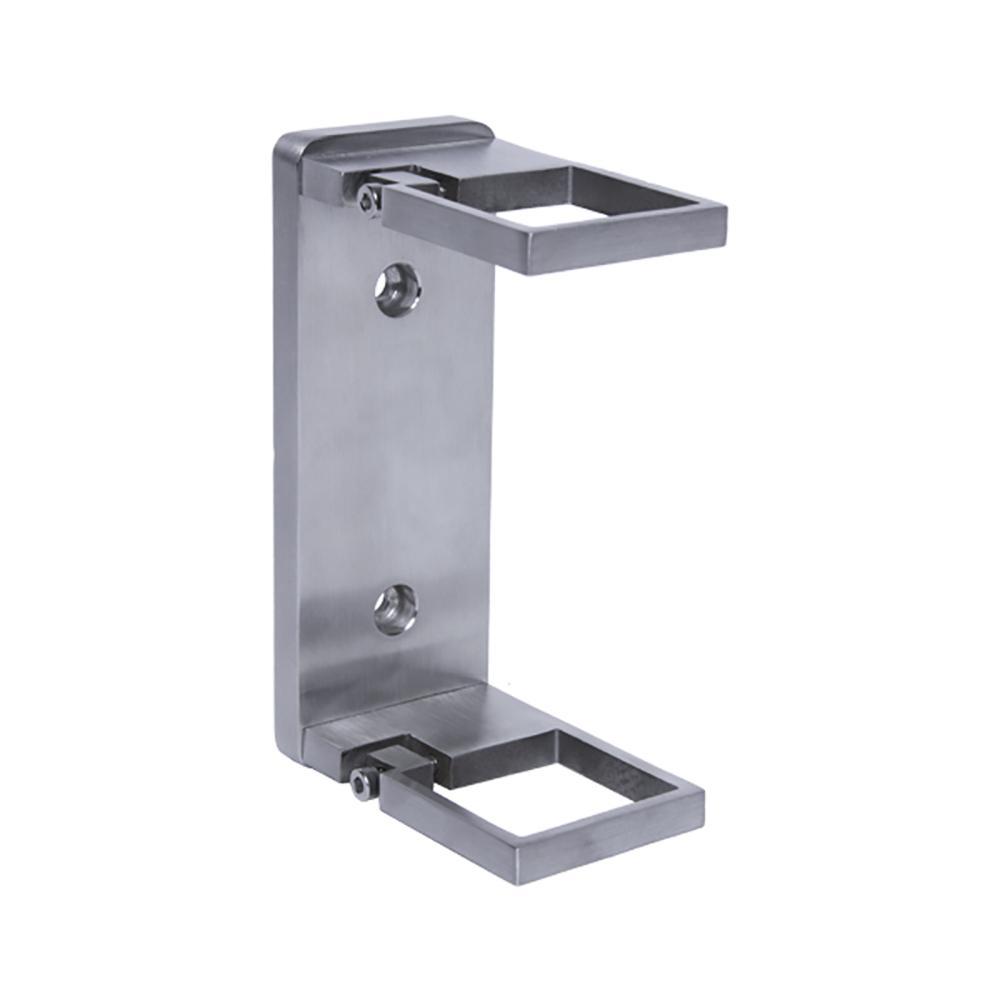

Wall Mount Option Requires Screws

Wood Screw – Part # AX00.091.900.A.SP
Metal Screw – Part # AX00.091.905.A.SP

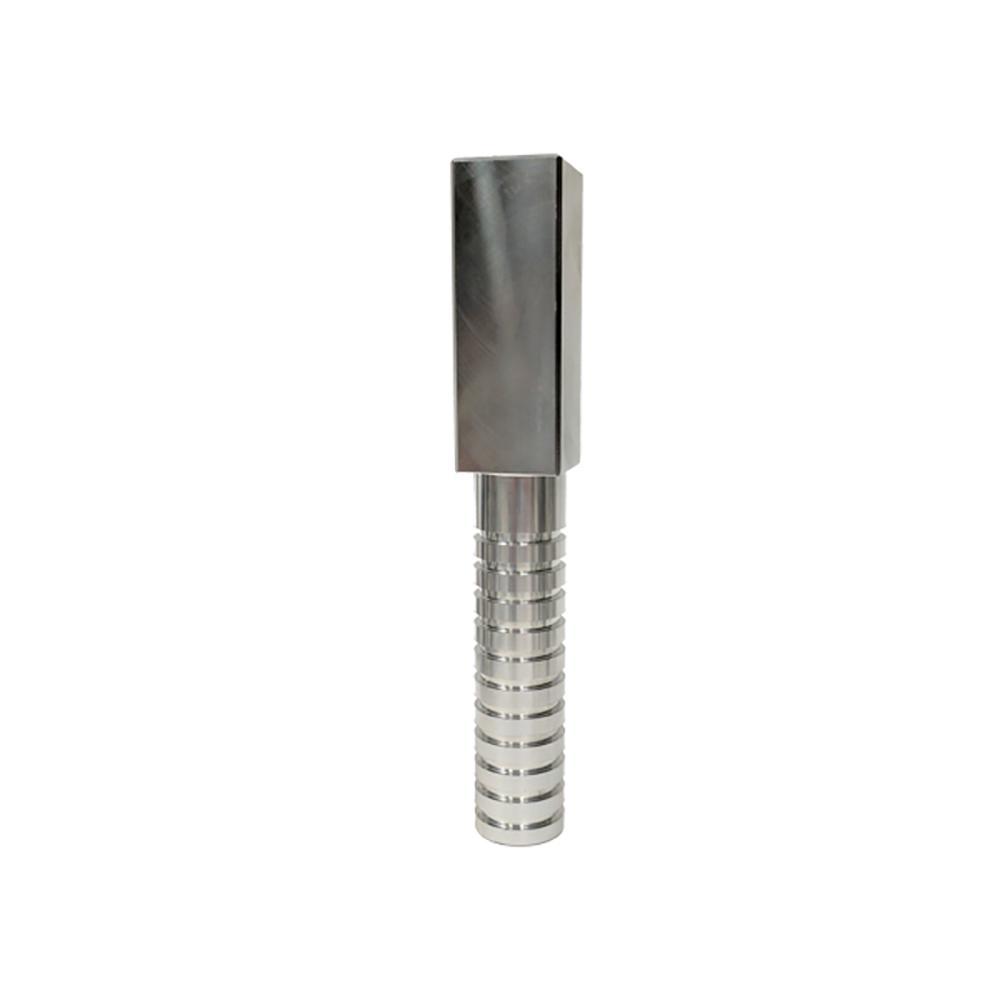

Core Mount requires adhesives for Installation

For mounting into structure – use 2 part epoxy EPC-410
For attaching tubing to core mount Installation uses our adhesive – Part # AX00.100.525

Mounting Methods using Attached Flange

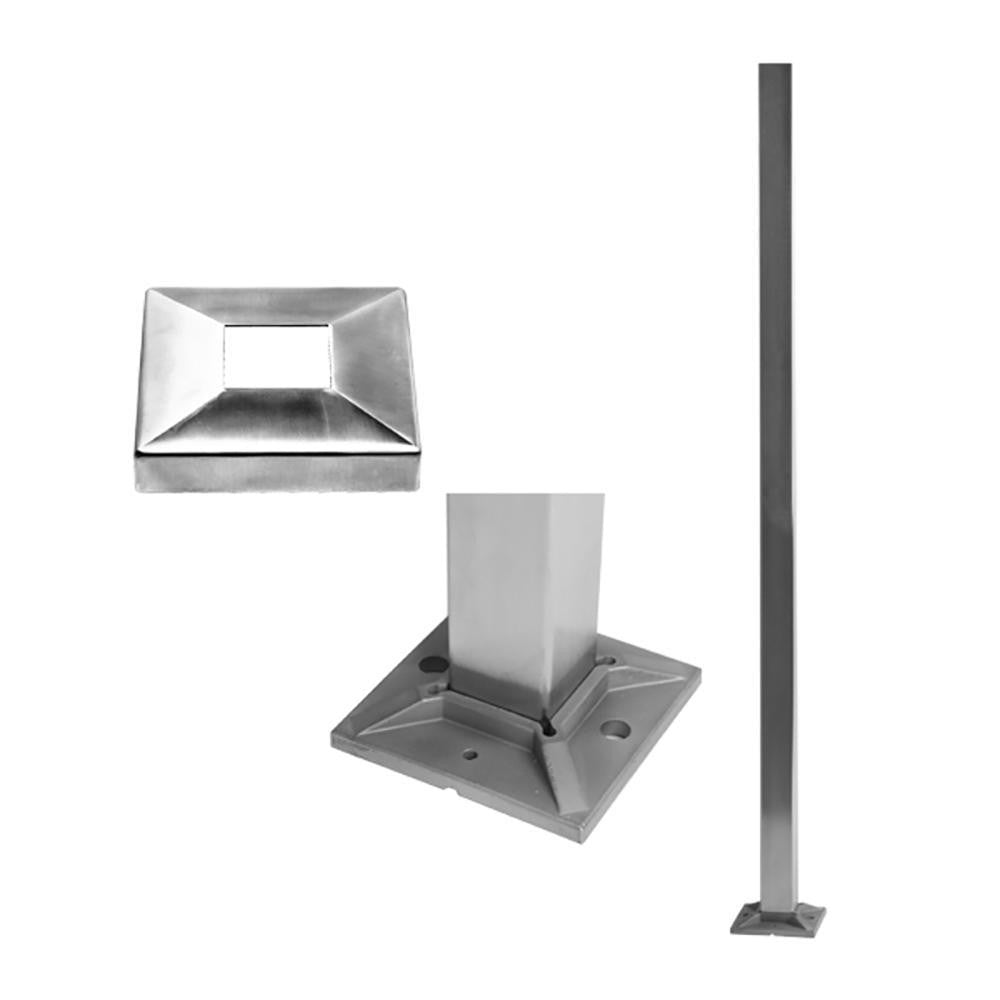

Standard Floor Mount – Screws into the floor with the already attached bracket and is covered with the flange.

Mounting Methods using no Flange – Recommended to purchase the 42.4 mm handrail tube and use that as the posts. This saves you money overall as you don’t have to purchase the already welded flange.

Level Floor Mount – No Flange – Purchase 40×40 mm square handrail tube. Purchase the Core Mount.
Angled Floor Mount – Purchase 40×40 mm square handrail tube. Purchase the Core Mount and Angled Flange Cover.
Side / Wall Mount – Purchase 40×40 mm square handrail tube. Purchase the Wall Mount kit. Also purchase flat or round end caps for the bottom of the post.

Click Here to see our Installation Guides for help on installing the stainless-steel system parts.

For Wood Square Newels, use the ForestKraft link. We carry a range of wood species and stains for you to choose from, including Red Oak, Hard Maple, Poplar, American Cherry, Euro Beech and Alder.
