House of Forgings

Wall Mount U Channel 120 x 45 mm

$1,883.89
Ships FOB Houston, TX

Wall Mount U Channel 120 x 45 mm is backordered and will ship as soon as it is back in stock.

Overview

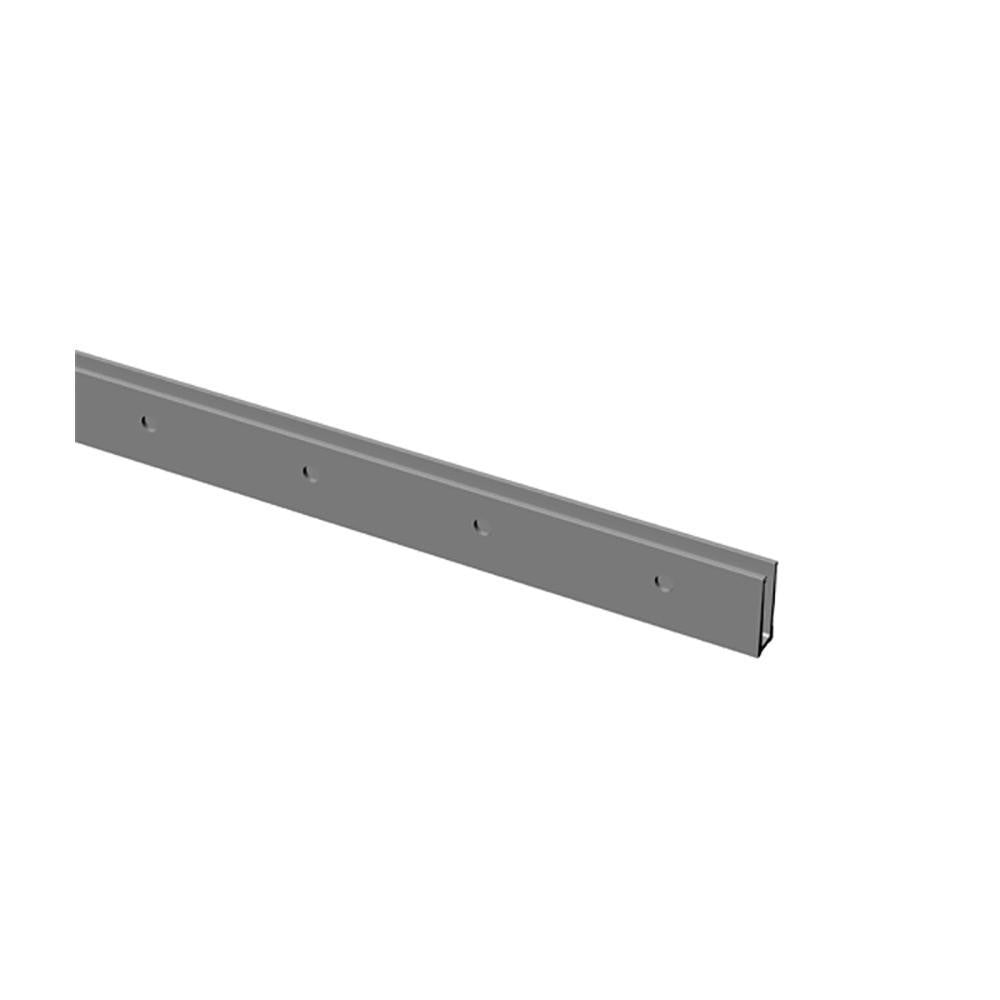

Wall Mount U Channel 120 x 45 mm

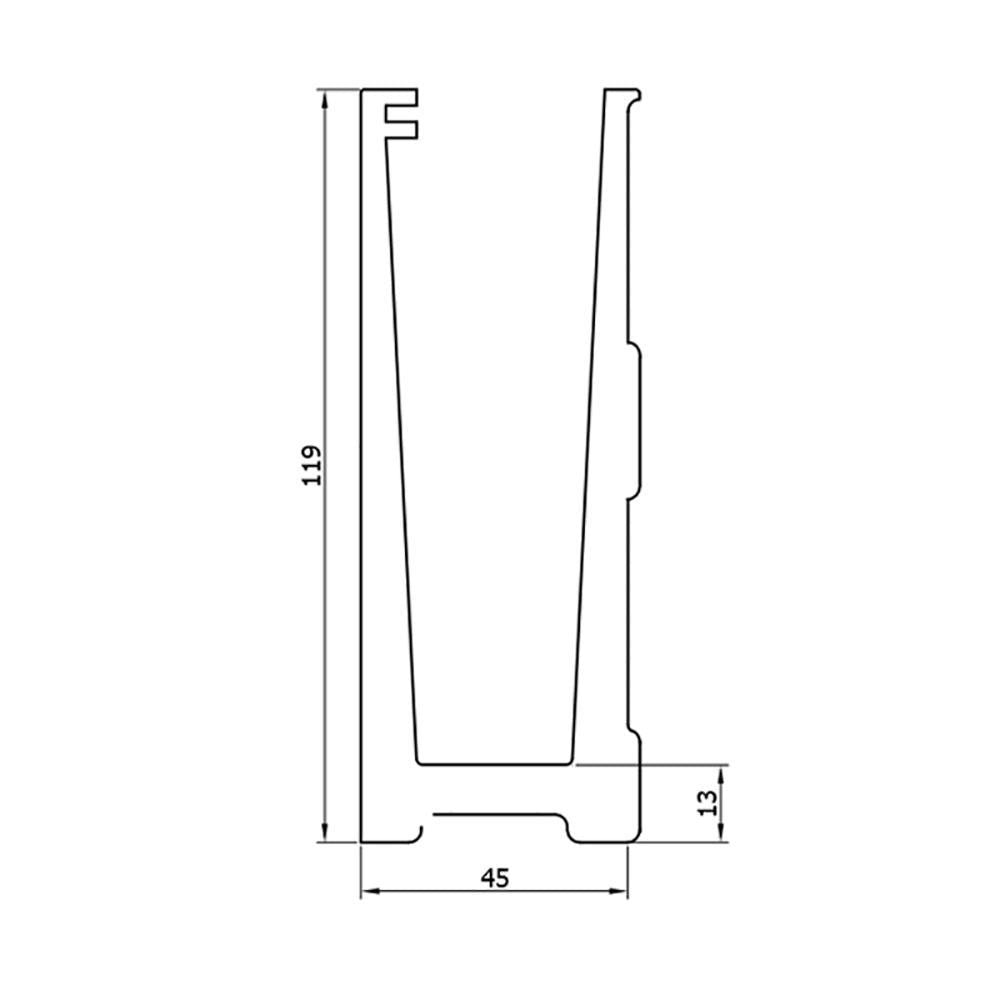

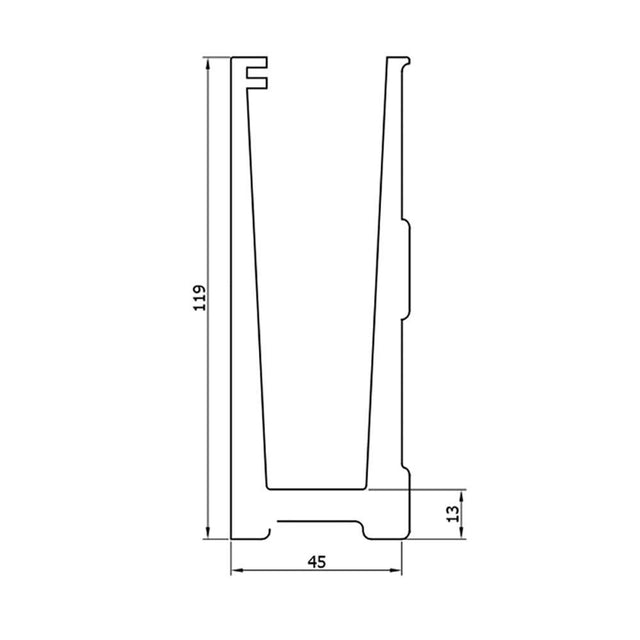

Our Wall Mounted U-Channel is used for holding 1/2β€³ Monolithic Glass. This U-Channel is 120 mm x 45 mm in size and comes in a length of 5000 mm ( 16 ft. 4 in. ). It has a Satin Aluminum Polish Finish.

This listing includes the U-Channel Base as well as the , inside and outside 90 degree corners, wall mount plugs and end caps.

The Wedge Kit ( sold HERE ) is also required in the following quantities:

  • 2 kits per 5000 mm piece of U-Channel
  • 1 kit per per 5 corners

Anchors are also required ( wood or concrete ) in the following quantities:

  • 20 wood screws or 20 concrete anchors per 5000 mm piece of U-Channel
  • 2 wood screws or 2 concrete anchors per corner

Accessory pieces include the following:

  • Hole Plugs – Used when you will not install the Cladding. Holes are already pre-drilled in the U-Channel. This plug fits the existing hole.
  • Outside 90 Degree Corner – 120 mm x 43 mm x 200 mm – Wall Profile for an Outside 90 Degree Corner.
  • Inside 90 Degree Corner – 120 mm x 43 mm x 200 mm – Wall Profile for an Inside 90 Degree Corner.
  • End Caps for Level as well as Angle / Rake – One for Flat and One for Angled up to 40 degrees. Installs with a dab of epoxy. Trim to Fit.
  • Glass Gasket and Wedge Kit – Comes with enough material to install 2500mm worth of glass. See description above on how to order enough of these kits.

For Wood Square Newels, use the ForestKraft link.

See our Installation Guides for help on installing the stainless steel system parts. Click Here
